FL45BLW-42JM150K
产品中心 行星减速箱

FL45BLW-42JM150K

45mm外转子无刷电机配42mm行星减速箱
选件:
  • FL45BLW-42JM150K

    编码器

  • FL45BLW-42JM150K

    齿轮箱

  • FL45BLW-42JM150K

    接插件

  • FL45BLW-42JM150K

    刹车

外转子无刷直流行星齿轮减速电机(内齿圈材质:金属)

BLDC Planetary Gear Moto (Ring Gear Material: Metal)

型号范围
FL45BLW /42JM150K

Φ42减速器,允许转矩范围:1.5N.m~15N.m

42mm OD Planetary Gearbox, Permissible Load Range: 1.5N.m~15N.m


接线方式   Wire Diagram


接插件插针号功 能说  明
ConnectorPinFunctionsDescription
CN1PIN1GND
JSTPIN2Phase U
B5P-VHPIN3Phase V

PIN4Phase W

PIN5GND
CN2PIN1GND
JSTPIN2+5VDC(+4.5V ~ 18VDC)
B5B-PH-K-SPIN3Hall U

PIN4Hall V

PIN5Hall W

PIN6GND



无刷电动机主要技术参数  Brushless Motor Technical Data

电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流线电阻线电感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL45BLW18-24V-7130A163246500500050301504.81.420.59
FL45BLW21-24V-6750A163246700526084502507.10.720.33
FL45BLW27-24V-6170A163246100484013070390100.560.27


无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL45BLW18-24V-7130A无刷直流电机(LD=18mm)   FL45BLW18-24V-7130A BLDC Motor (LD=18mm)

减 速 比   Reduction ratio3.715.181419274959688295115181218253305354426
减速级数 Number of gear trains11223333333444444
减速器长度(L)  Length(L)mm31.531.542.142.152.552.552.552.552.552.552.562.962.962.962.962.962.9
空载转速   No-load speedr/min1752125546434224113311096796857363026211815
额定转速   Rated speedr/min13489653572631851028574615343282320161412
额定转矩   Rated torqueN.m0.170.230.570.771.11.82.22.533.54.25.97.18.29.91214
最大瞬间允许负载Max. permissible load in a short timeN.m4.54.5181830303030303030383838383838


配置FL45BLW21-24V-6750A无刷直流电机(LD=21mm)   FL45BLW21-24V-6750A BLDC Motor (LD=21mm)

减 速 比   Reduction ratio3.715.181419274959688295115181218253305354
减速级数 Number of gear trains1122333333344444
减速器长度(L)  Length(L)mm31.531.542.142.152.552.552.552.552.552.552.562.962.962.962.962.9
空载转速   No-load speedr/min18061293479353248137114998271583731262219
额定转速   Rated speedr/min1418101537627719510789776455462924211715
额定转矩   Rated torqueN.m0.280.390.951.31.833.64.255.87.19.912141515
最大瞬间允许负载Max. permissible load in a short timeN.m4.54.51818303030303030303838383838


配置FL45BLW27-24V-6170A无刷直流电机(LD=27mm)   FL45BLW27-24V-6170A BLDC Motor (LD=27mm)

减 速 比   Reduction ratio3.715.181419274959688295115181218
减速级数 Number of gear trains1122333333344
减速器长度(L)  Length(L)mm31.531.542.142.152.552.552.552.552.552.552.562.962.9
空载转速   No-load speedr/min16441178436321226124103907464533428
额定转速   Rated speedr/min13059343462551799982715951422722
额定转矩   Rated torqueN.m0.430.611.522.84.75.66.57.89111515
最大瞬间允许负载Max. permissible load in a short timeN.m4.54.51818303030303030303838

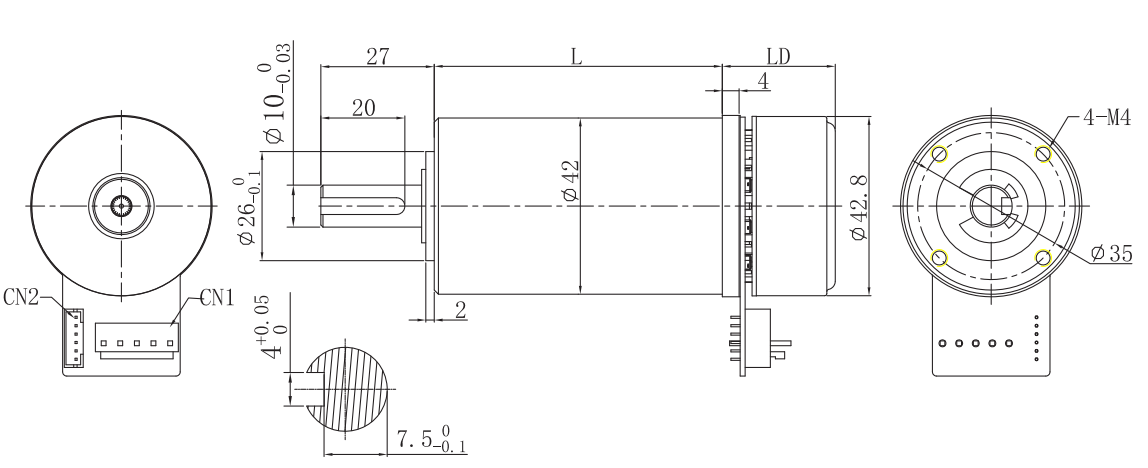

电机尺寸
