    FD430
    Product Stepping motor driver

    FD430

    1. New 32-bit DSP Technology
    2. Ultra-low vibration noise
    3. Built-in high micro-step, ranging from 200 to 51200
    option:
    • FD430
    • FD430
    • FD430
    • FD430

    Features :

    ● New 32-bit ARM Technology

    ● Ultra-low vibration noise

    ● Built-in high micro-step, ranging from 200 to 51200

    ● Motor auto-identification and parameter auto-configuration technology.

    ● Variable current control for less motor heating

    ● Automatic idle-current reduction in half

    ● Suitable for 4,6,8 lead 2-phase motors

    ● Optically isolated differential signal input

    ● Pulse frequency up to 500 KHz(default  :160KHz)

    ● Output current programmable, from 0.1A to 3A

    ● Driver power supply: DC:+24V-50V

    ● Over-voltage, Under-voltage, over-current protections


    Typical application:

    FD430 can be used in various kinds of small and medium-sized equipment and machines, such as engraving machines, labeling machines, laser cutters, laser typesetting, plotting instrument, CNC machine, automatic assembly equipment, and so on. Particularly adapt to the applications desired with low noise, high speed.


    Product overview :

    The FD430 adopts the latest 32-bit ARM digital processing technology. Drive control algorithm uses advanced variable current technology and advanced frequency conversion technology. The driven motors can run with low heating, small noise, smooth movement. Users can set any micro-step within 200~51200 and any current value within the rated current, which can meet the needs of most applications. Thanks to the built-in micro-resolution technology, the effect of high resolution can be achieved and the driven motors can run with much smaller noise, lower heating, smoother movement at low to high speed even under low resolution conditions. Motor auto-identification and parameter auto-configuration technology offers optimum responses with different motors and easy-to-use.


    Microstep Resolution Selection :

    Microstep

    1

    2

    4

    8

    16

    18

    32

    64

    5

    10

    20

    25

    36

    40

    50

    100

    PU/Rev

    200

    400

    800

    1600

    3200

    3600

    6400

    12800

    1000

    2000

    4000

    5000

    7200

    8000

    10000

    20000

    SW8

    ON

    ON

    ON

    ON

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    SW7

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    SW6

    ON

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    SW5

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    Note: When SW5, SW6, SW7 and SW8 are all on, the upper computer can be modified into any subdivision within 200-51200.


    Dynamic current Setting :

    Current RMS

    0.1A

    0.2A

    0.3A

    0.5A

    0.6A

    0.7A

    0.8A

    1.0A

    1.2A

    1.3A

    1.5A

    1.6A

    1.7A

    1.8A

    2.0A

    2.2A

    SW4

    ON

    ON

    ON

    ON

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    OFF

    SW3

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    ON

    ON

    ON

    ON

    OFF

    OFF

    OFF

    OFF

    SW2

    ON

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    ON

    ON

    OFF

    OFF

    SW1

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF

    ON

    OFF


    Interface description :


    Signal

    Function

    Description

    PWR

    Power indicator

    The green indicator light is on when the power is on.

    ALARM

    Fault indicator

    The blinking period is 3 seconds. The number of blinking indicates fault information. One time indicates over-current, and two times indicates over-voltage.

    PU+

    Pulse positive input

    At pulse positive input, +5V to +24V can drive. If the input signal is higher than +24V, the current limiting resistor must be connected to the PU- port.

    PU-

    Pulse negative input

    The falling edge is effective, and the motor takes one step whenever the pulse changes from high to low.

    DR+

    Direction positive input

    At direction positive input, +5V to +24V can drive. If the input signal is higher than +24V, the current limiting resistor must be connected to the PU- port.

    DR-

    Direction negative input

    Used to change the motor direction.

    ENA+

    Enable positive input

    At enable positive input, +5V to +24V can drive. If the input signal is higher than +24V, the current limiting resistor must be connected to the PU- port.

    ENA-

    Enable negative input

    When effective, the motor releases, and has the function of clearing the position error alarm.

    A+/A-

    Motor line A-phase

    Lead wire A+/A- of motor A-phase

    B+/B-

    Motor line B-phase

    Lead wire B+/B- of motor B-phase

    V+/V-

    Power supply input

    Driver power supply: DC:+24V-50V

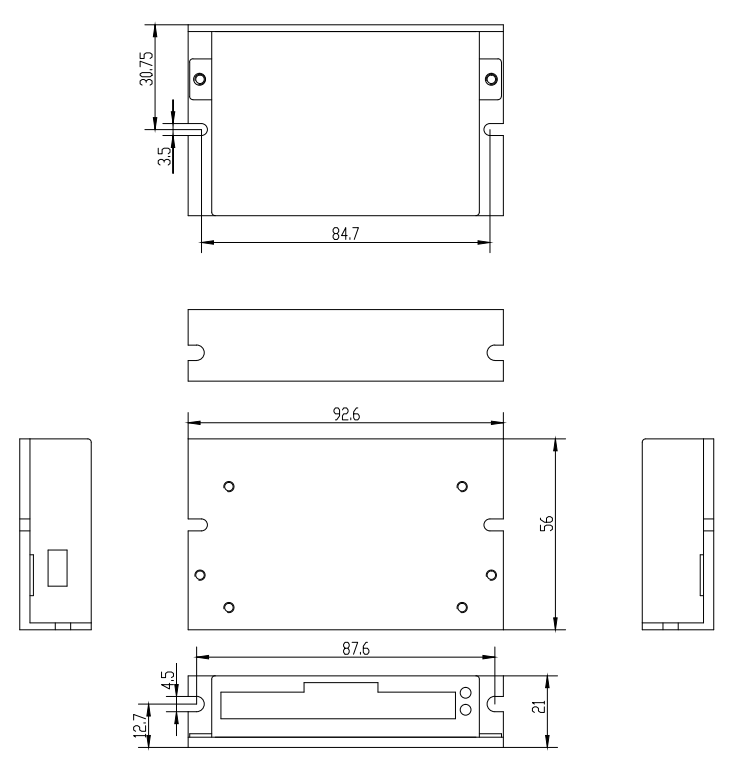

    Motor size

    iFD42

    Download
    User's Manual for FD430 Digital 2-Phase Stepper Driver 632.12 KB
