FE17-28
Product FE series Encoder

FE17-28

FE17-28 Series Encoder:
Two channels, optical type. Its typical application is printing machine, servo motor, working plant automation. Not recommed use on application referring to human safety, such as application with brake system.
option:
  • FE17-28
  • FE17-28
  • FE17-28
  • FE17-28

Parameter Overview:









Suitable Motor

Motor size

Suitable for   28,35 and above Square Stepper Motor

Motor Shaft diameter

3mm,4mm,5mm,6mm,6.35mm,7mm

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,7mm

Storage Temperature

-4085

Environmental   conditions

Application

No corrosive,   flammable, explosive, conductive gas, liquid and dust.

Temperature

-2580

Humidity

No more than 85% RH













Electrical Parameter

Supply Voltage

5VDC±0.5V

    Current   Consumption

60mA

Differential   Single Output

5V,GND,   A+/A-,B+/B-,Z+/Z-,

  Output Level mode

TTL Compatible

Index Width

1/4T

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output   (VoL) ≤0.5V

Differential   Signal Output Format

Line Drive 26C31

Optional   Resolution(Unit:CPR)

500/1000/2000

Duty Cycle

50% ±10%

Phase Difference

 90°±10°

Frequency Response

220KHz

Note: The signal   frequency = (Speed(Rpm)  *  number of Lines)/60

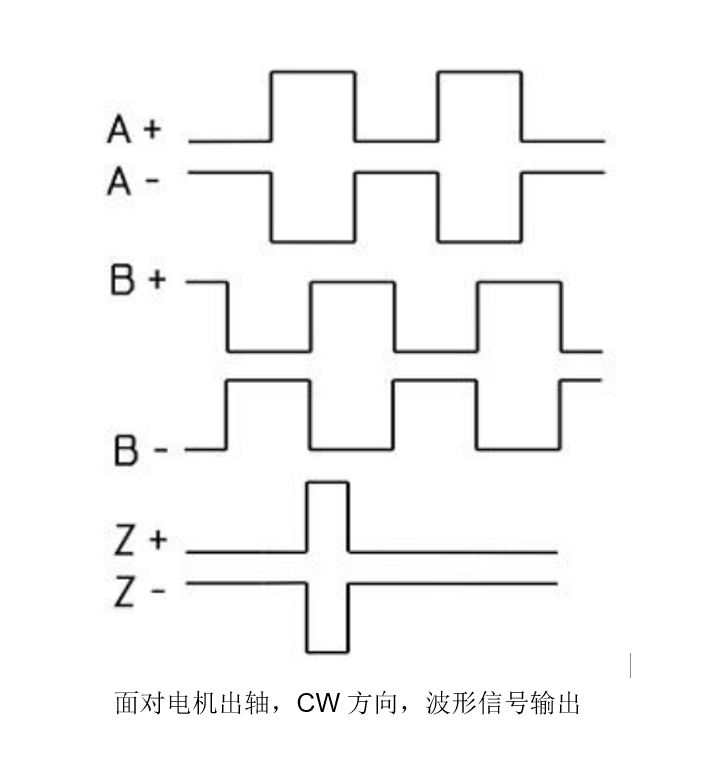

Waveform:image

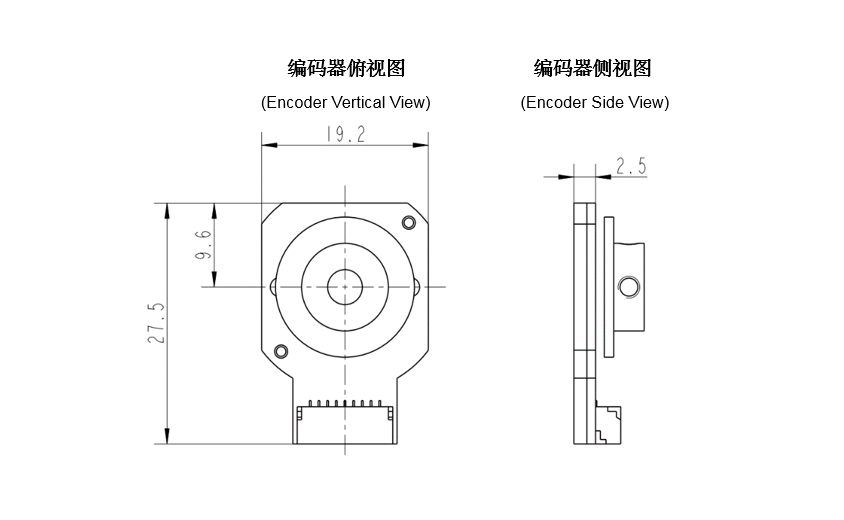

Motor size


Download
FE17-28系列 三通道反射式光电编码器 173.13 KB
