IWS55L-2D2270B-MCAFC
Product Hub Servo Catalog

IWS55L-2D2270B-MCAFC

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • IWS55L-2D2270B-MCAFC
  • IWS55L-2D2270B-MCAFC
  • IWS55L-2D2270B-MCAFC
  • IWS55L-2D2270B-MCAFC

1. Specifications

ModelIWS55L-2D2270B-MCAFC
Diameter Size140mm
Rated Voltage24VDC
Rated Current3.7 Arms
Maximum speed270rpm(Line speed   2m/s)
Rated Torque2.2 N.m
Peak Torque3.55 N.m
CommunicationUART+CAN
UART Baudrate115200bps,support   controlled by controller or PC software
CAN Baudrate500kbps/1Mbps set by   DIP switch
Protection   FunctionOver-Voltage,Low-Voltage,Over-load,Short-circuit,High   temperature,Speed-loss etc.
Operating   Temperature-10℃~40℃(Non-freezing)
Operating   Humidity5~95%RH(Non-condensing)
Storage   Temperature-10℃~70℃(Non-freezing)
Storage   HumidityBelow   90%RH(Non-condensing)
Protection   ClassIp67 except shaft
Weight1.5Kg
Suggested Load   (2 PCS)Below 50kg

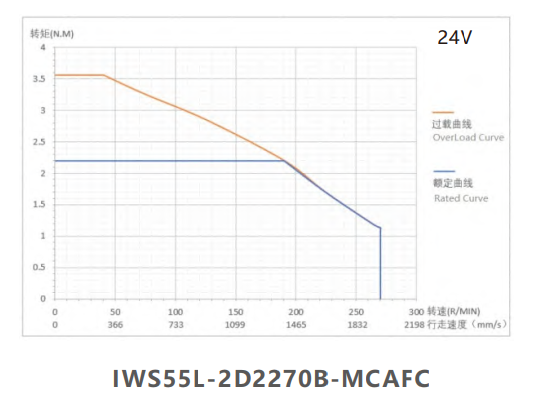

2. Torque Curve

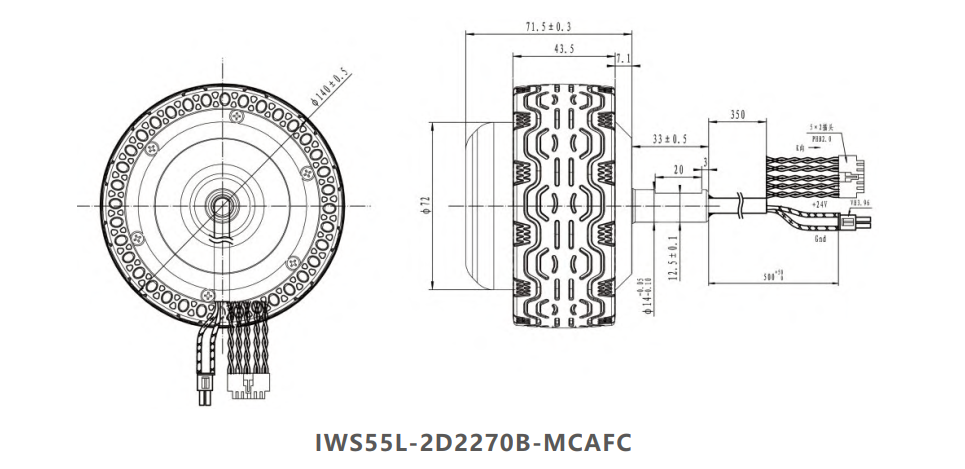

Motor size


Download
