Motor Shaft diameter

3mm,4mm,5mm,6mm

Storage Temperature

-40℃～85℃

Environmental   conditions

Application

No corrosive, flammable,   explosive, conductive gas, liquid and dust.

Temperature

-25℃～80℃

Humidity

No more than 85% RH

Supply Voltage

5V±0.5V

Current   Consumption

≤70mA

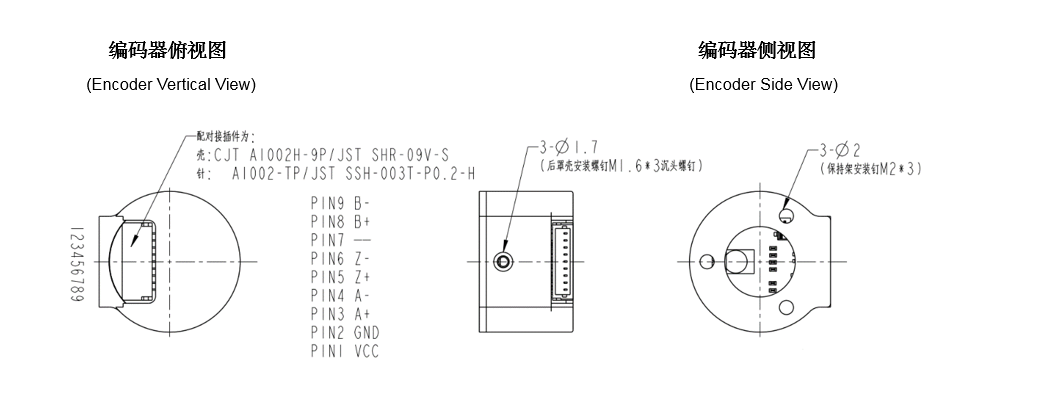

Differential   Single Output

5V,GND,   A+/A-,B+/B-,Z+/Z-,

Output Level mode

TTL Compatible

Index Width

1/4T or 1/2T

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Electrical Parameter

Low Level Output   (VoL) ≤0.5V

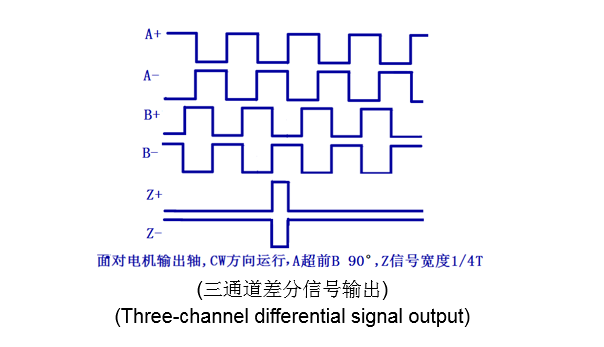

Differential   Signal Output Format

Line Drive 26C31

Optional   Resolution（Unit：PPR）

250 line/500 line/1000 line/2000 line

Duty Cycle

50% ±10%

Phase Difference

 90°±10°

Frequency Response

≤220KHz

Note: The signal frequency = (Speed(Rpm)    *  number of Lines)/60
