Product PM stepper motor

PMG25/35

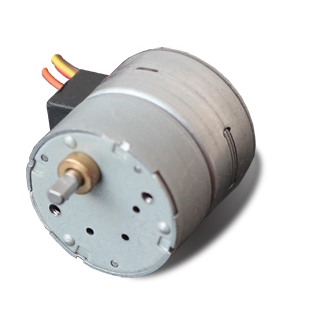

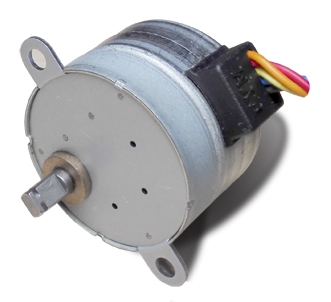

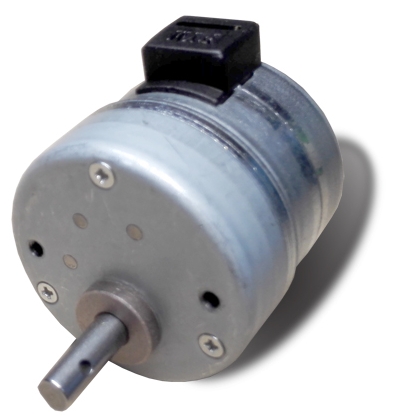

25,35mm PM Stepper motor with gearbox
option:
  • PMG25/35
  • PMG25/35
  • PMG25/35
  • PMG25/35

特性概要General Specification

Item

Specifications

步距角精度Step Angle Accuracy

±7% (整步,空载full step, no load)

电阻公差Resistance Accuracy

±10%

电感公差Inductance Accuracy

±20%

温升Temperature Rise

80K  Max. ambient temperature 40。C

80K 环境温度40℃

环境温度Ambient Temperature

-10。C~+50。C

绝缘电阻Insulation Resistance

100MΩMin. ,500VDC

绝缘等级Insulation Class

Class E

介电强度Dielectric Strength

650VAC for one second, leakage current 1mA

650VAC 一秒, 漏电电流1mA


电性能SPECIFICATIONS

型号

Model

步距角

Step Angle

(Deg.)

相数

No. of

Phase

电压

Voltage

(V)

相电流

Current

/Phase

(A)

相电阻

Resistance

/Phase

(ohms)

空载牵入频率

No-load

Pull-in

Frequency

(pps)

牵入扭矩

Pull-in  Torque



 (g.cm)

保持力矩

Holding

Torque



(g.cm)olHol



定位力矩

Detent

Torque

(g.cm)

减速比

Ratio

接线图

Wire

Diagram

PMG2505-01

7.5/5

2

2.6

0.52

5

450

75 at 200pps

450

<150

1:5



A

PMG2505-02

15/5

2

3.5

0.365

9.6

420

100 at 100pps

500

<150

1:5

PMG2510-01

7.5/10

2

2.8

0.467

6

550

200 at 200pps

1400

<500

1:10

PMG2530-01

7.5/30

4

13.3

0.11

120

680

750 at 100pps

4000

<1400

1:30

B

PMG3519-01

7.5/19

4

24

0.218

110

360

2280 at 200pps

4500

<2280

1:19

C

PMG3519-02

7.5/19

4

12

0.4

30

360

1900 at 200pps

4000

<2600

1:19

PMG3508-01

7.5/8.4

4

12

0.4

30

500

840 at 400pps

1150

<500

1:8.4

PMG3530-01

7.5/30

4

12

0.4

30

500

3000 at 400pps

5000

<1500

1:30

PMG3560-01

7.5/60

4

12

0.4

30

420

6000 at 400pps

8000

<3000

1:60

PMG35120-01

7.5/120

4

12

0.4

30

400

8000 at 300pps

10000

<6000

1:120


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.


Motor size



接线图


Download
