FE14-40
Product FE series Encoder

FE14-40

FE14-40 Series Encoder:
Two channels, optical type. Its typical application is printing machine, servo motor, working plant automation. Not recommed use on application referring to human safety, such as application with brake system.
option:
  • FE14-40
  • FE14-40
  • FE14-40
  • FE14-40

Parameter Overview:

Suitable Motor

Motor size

Suitable for 42,   57 and above (Stepper/Brushless/Servo Motor)

Motor Shaft   diameter

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,8mm

Storage Temperature

-4085

Environmental   conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-4080

Humidity

No more than 85% RH



Electrical   Parameter

Supply Voltage

5VDC±0.5V

Current Consumption

≤60mA

Signal Output

Single-ended

5V,GND,A,B,Z

Differential

5V,GND,A+/A-,B+/B-,Z+/Z-

Output Level mode

TTL Compatible

Index Width

1/4T / 1T(3/4T5/4T)

 (According to the PPR)

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output   (VoL) ≤0.4V

Differential   Signal Output Format

Line Drive 26C31


Optional   Resolution(Unit:PPR

Decimal: 100,200,360,400,500,1000,2000,2500

Binary: 256,512,1024,2048

Duty cycle

50% ±10%

Phase difference

 90°±10°

Frequency Response

500KHz

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60

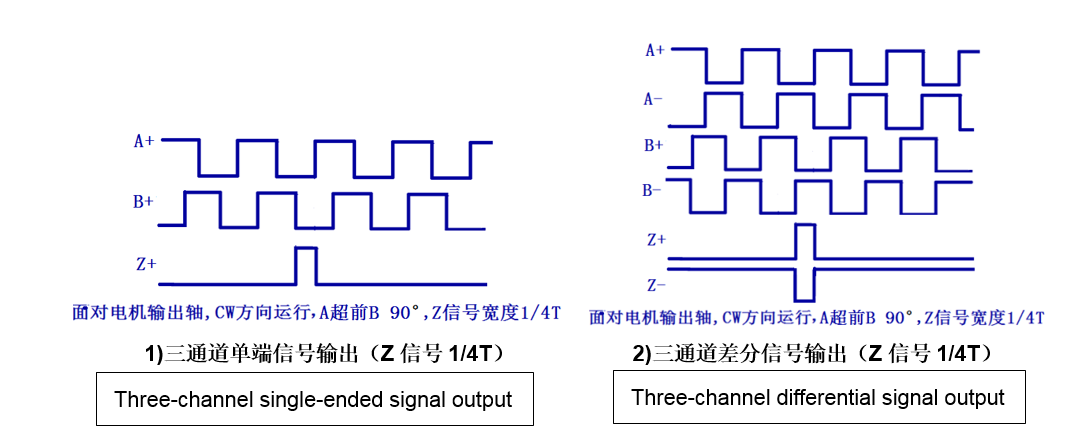

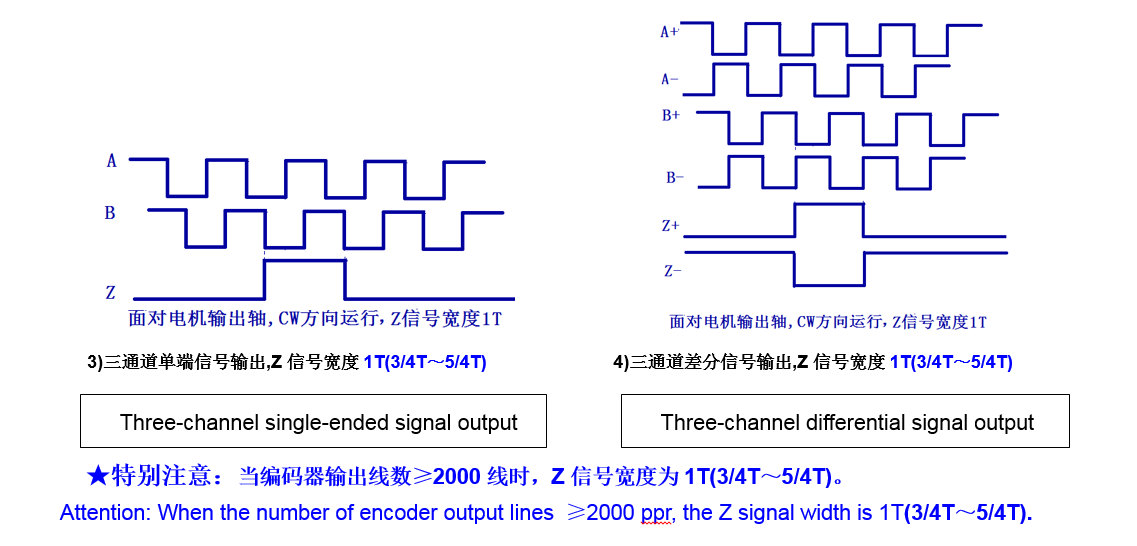

Waveform:

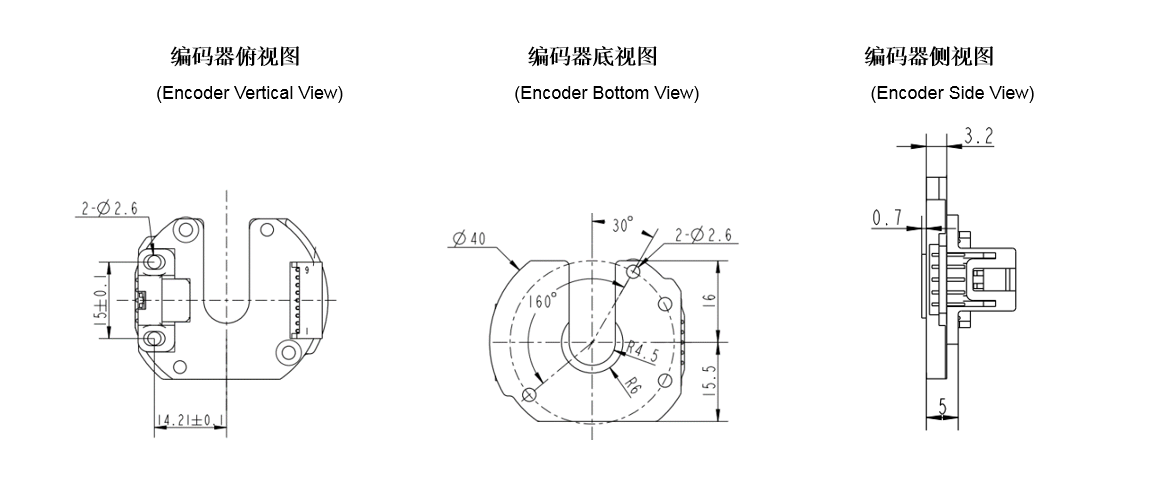

Motor size


Download
FE14-40系列 三通道性价比版光电编码器 220.4 KB
